Description

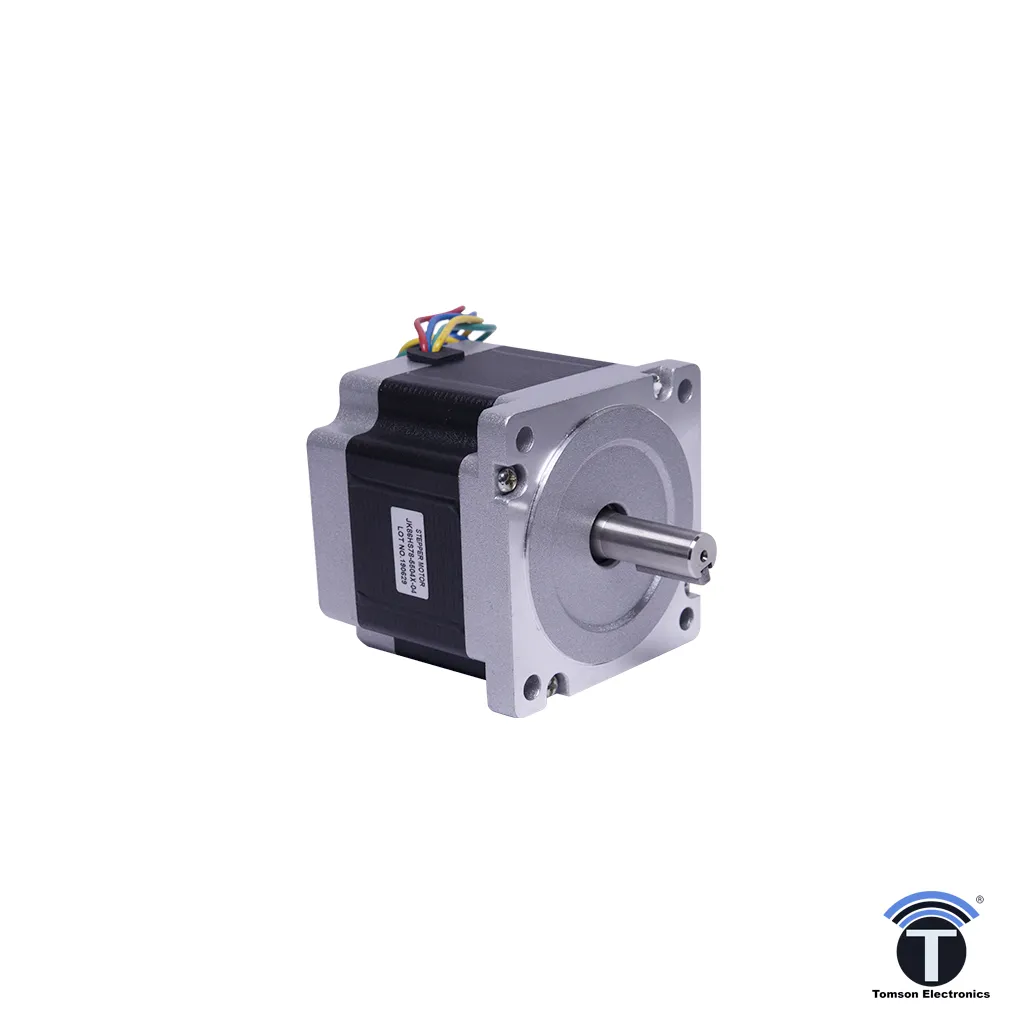

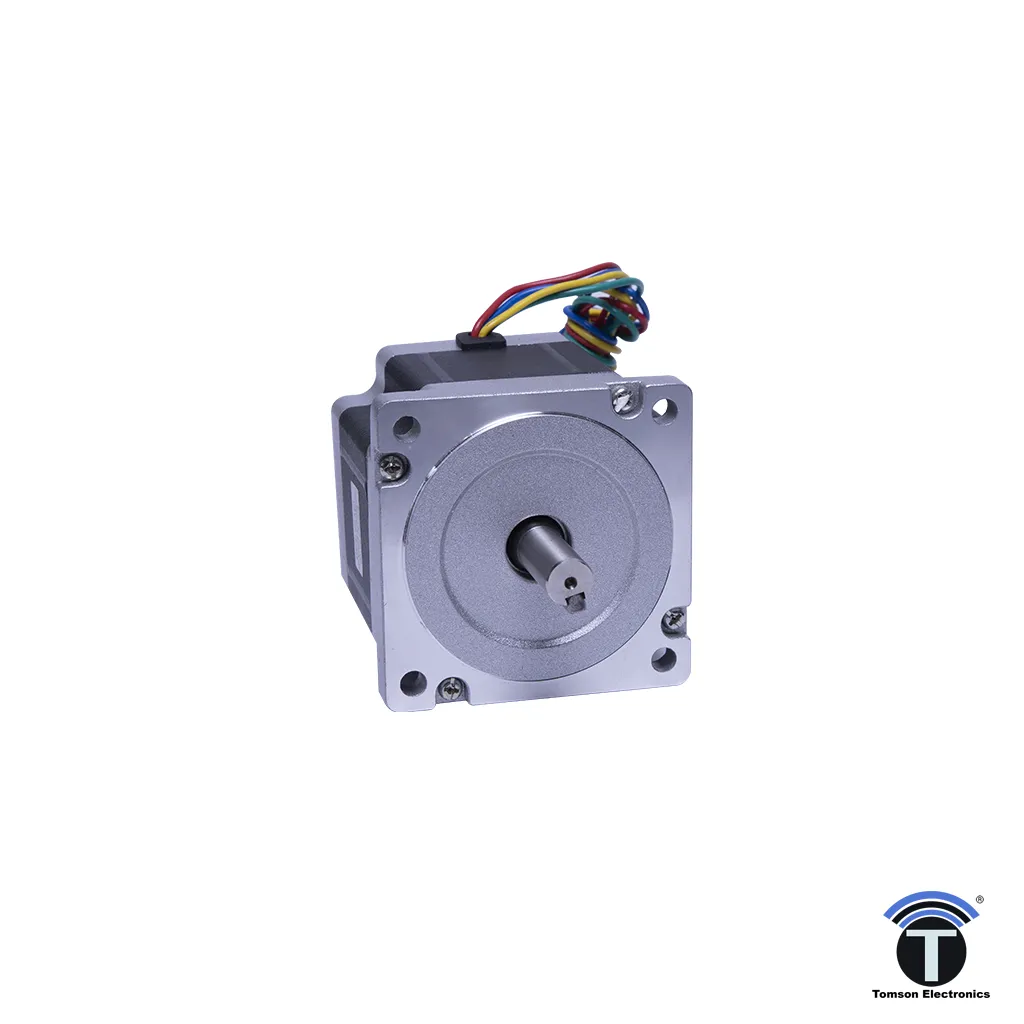

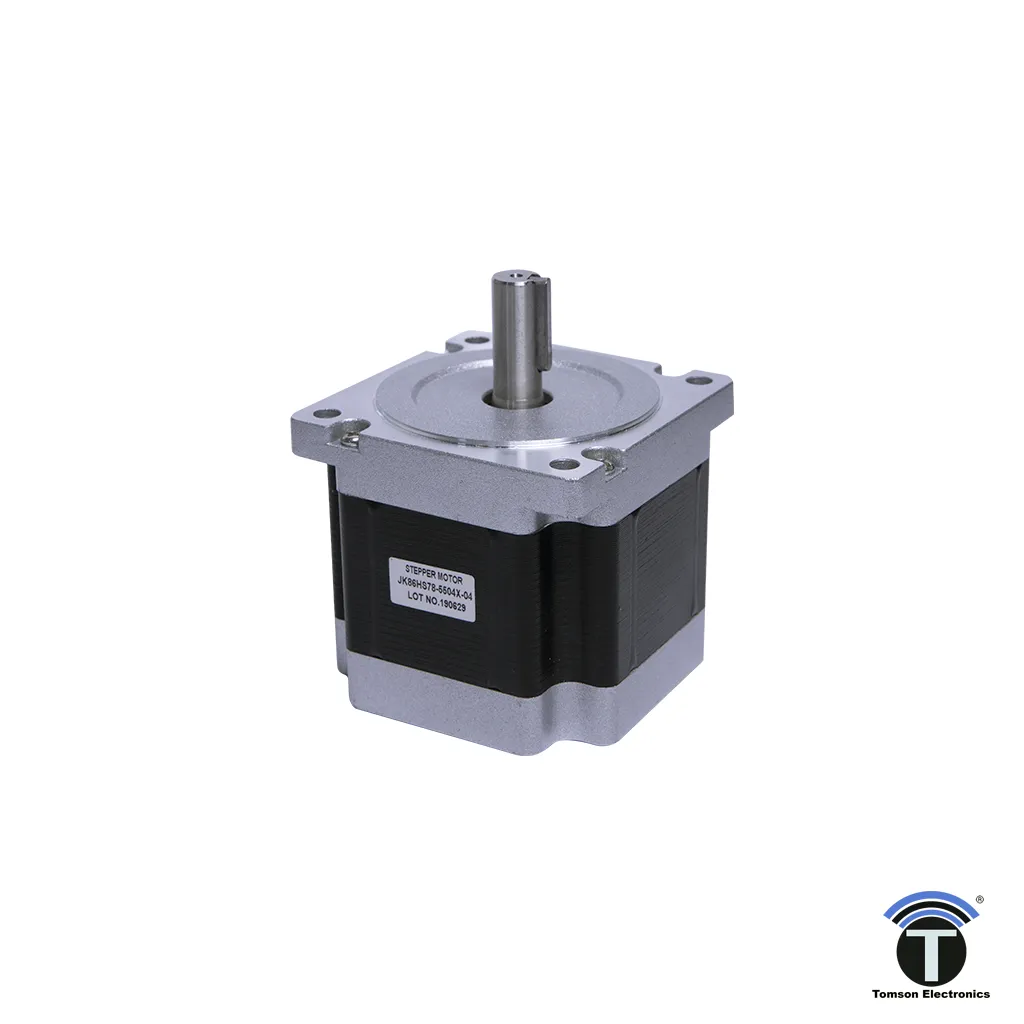

This NEMA 34 Stepper Motor is a powerhouse when it comes to larger machines that require high torques. These are specially designed to withstand high torque requirements of large CNC machines.
The NEMA34 46 kg-cm Hybrid Stepper Motor is a brushless dc motor that operates in Open Loop Control system. The motor shaft is customized and has a shape of 94-UP Mustang V. This type of shaft is useful in providing stability in high power operation.
Specification
Features
|
Step Angle |
1.8 Degree |
|
Holding Torque |
46 kg-cm |
|
Operating Voltage |
4.2 V |
|
Supply Current (A) |
4 A/Phase |
|
No. of Leads |
4 |
|
Inductance |
7.3 mH/Phase |
|
Resistance |
0.87 Ω/Phase |
|
Weight (gm) |
1840 |
|
Dimensions (mm) LxWxH |
70x85x85 |
|
Frame Size (mm) |
85 x 85 |
|
Inductance Accuracy |
±20% |
|
Resistance Accuracy |
±10% |
|
Shaft Type |
KeyWay type |
|
Shaft Diameter (mm) |
14 |
|
Shaft Length (mm) |
37 |
|
Step Angle Accuracy |
±5% |
|
Cable Length |
50 CM |
|
Shipment Weight |
2.1 kg |
|
Shipment Dimensions |
12 x 10 x 10 cm |
